Squelch indicator

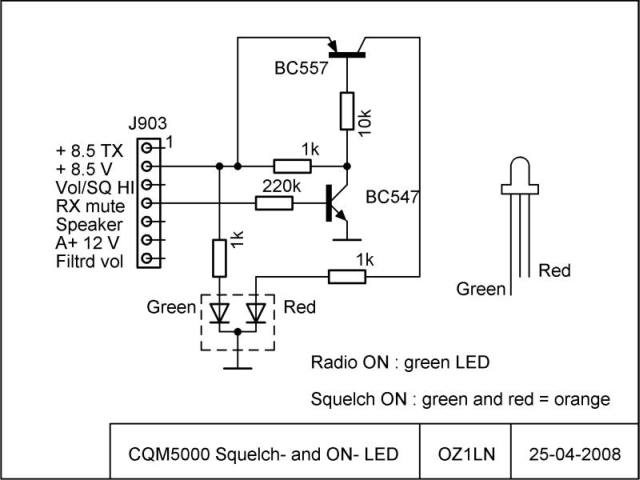

This circuit uses a dual LED, green and red, common catode.

When the radio is turned ON, the green LED will light.
When a signal is received, the squelch will open, and the red LED lights too.
This gives an orange colour.

A single LED can be used instead, to give the open-squelch-info only.

Return to Stornophone 5000 family
Squelchindicator

Squelchindicator

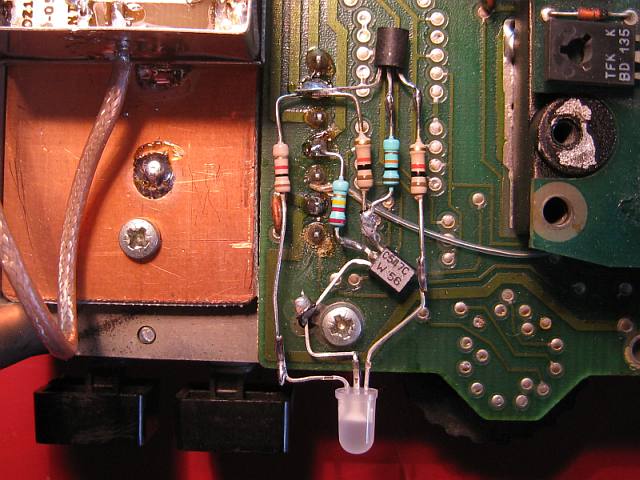

Mounted in a one channel radio.

Squelchindicator

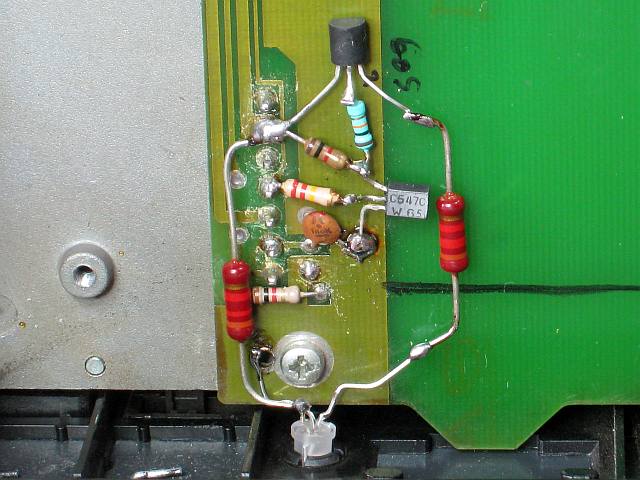

Mounted in a synthesizer radio.
