Jumpers, when tonemodule is not used.

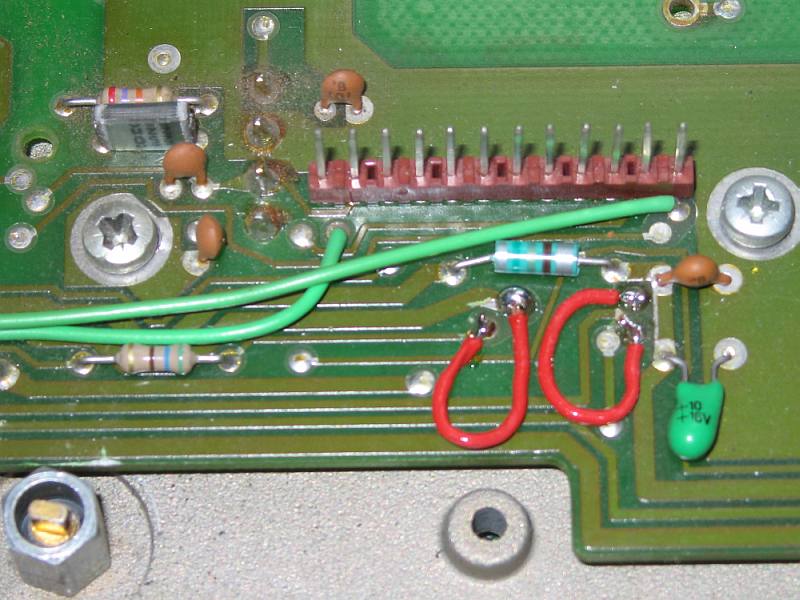

Red jumpers show on picture below are used to enable microphone and transmit.
H3-H4 (TX key) and H5-H6 (microphone), see interconnect circuit and printboard.
